Description

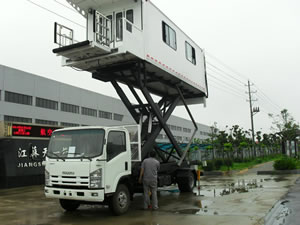

The HD-AT60 disabled passenger lift truck is special airport equipment to assist disabled passengers on and off the planes. It is often used with Boeing B737, B747, B757, B767, B777, Airbus A320, A300, A330, A340 and other aircrafts.
The truck is comprised of a second class chassis, chassis assembly, lifting fork assembly, carriage assembly, front and behind working platform assembly, air conditioning system, hydraulic system, and electrical system.
FeatureTechnical Specifications
Carriage Rated Load: 1500kg
Rear Lift Platform Rated Load : 400kg
Platform Left-to-Right Adjustment Range: 0~600mm
Platform Scale Adjustment Range : 0~500mm
Fixed Platform Dimension (Length * Width): 1200*2280mm
Mobile Platform Dimension(Length* Width): 900*1300mm
Rear Lift Platform Dimension(Length *Width): 1480*2190mm
Project | AT6A Configuration 1 (600P/ MT/EURO 4) | AT6B Configuration 2 (700P/ MT/EURO 4) | AT6C Configuration 3 (700P/ MT/EURO 5) | AT6D Configuration 4 (700P /AT/EURO 5) |
Engine Manufacturer/Model | ISUZU(ChongQing) Engine Co., LTD /4HK1-TCG40 | ISUZU(ChongQing) Engine Co., LTD/4HK1-TCG40 | ISUZU(ChongQing) Engine Co., LTD/4HK1-TC51 | ISUZU(ChongQing) Engine Co., LTD/4HK1-TC51 |
Engine Power | 88KW | 139KW | 141KW | 141KW |
Under-pan Wheel Base | 3815mm | 5200mm | 5200mm | 5200mm |
Platform Working Height | 2400~5845mm | 2600~5700mm | 2500~5800mm | 2500~5800mm |
Front Platform Rated Load | 1000kg | 1000kg | 1200kg | 1200kg |
Rear Lifting Platform Range | 0-1400mm | 0-1500mm | 0-1500mm | 0-1500mm |
Curb Weight | 7200kg | 11500kg | 11300kg | 11300kg |
Boundary Dimension (Length *Width * Height) | 6900×2400×3800mm | 8990×2450×3880mm | 8990×2450×3880mm | 8990×2450×3880mm |
Under-pan(Manufacturer /Model) | ISUZU Motor Co., LTD/QL1070A1ARY | ISUZU Motor Co., LTD/QL11009PARY | ISUZU Motor Co., LTD /QL1100A8PAY | ISUZU Motor Co., LTD/QL1100A8PAY |
Engine Emission | GB 4 | GB 4 | GB 5 | GB 5 |
Carriage Dimensions (Length * Width* Height) | 4600*2300*2150mm | 6350×2200×2150mm | 6350×2200×2100mm | 6350×2200×2100mm |
Gearbox (Manufacturer /Model) | ISUZU Motor Co., LTD/MSB(Five-Speed) | ISUZU Motor Co., LTD /MLD-6Q(Five-Speed) | ISUZU Motor Co., LTD /MLD-6Q(Five-Speed) | ISUZU Transmission Co., LTD /ALLISON2500 |
