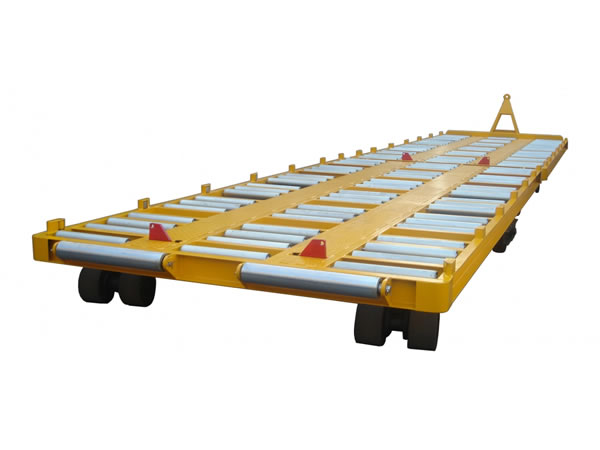

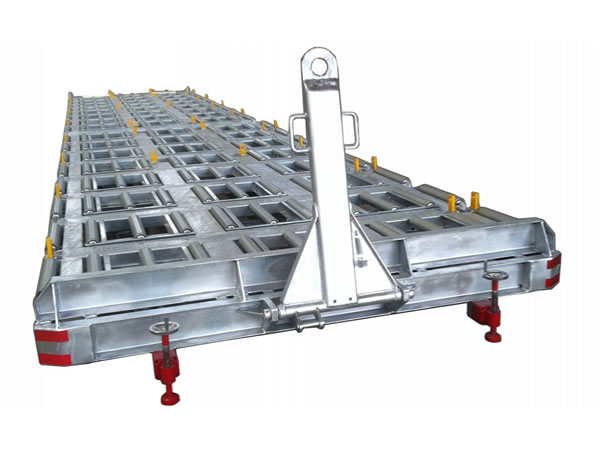

40FT Cargo Pallet Trailer

Introduction
The 40FT cargo pallet trailer can be specially used for loading,unloading and transporting cargo pallets or containers. It has the features of labor-saving, safety, quick cargo transporting, high loading capacity and flexible steering. It can be used in airports, railway stations and other places for transporting cargo pallets, large cargo containers and cabinets.

This cargo pallet trailer can handle 125"x96", 125"x88" and 108"x88" cargo pallet or container; 16ft, 20ft and 40ft pallet

Features
1) The cargo pallet trailer is made of high quality steel providing sturdiness and durability, as well as providing large loading capacity of 18000kgs. The MIG welding technology ensures the trailer of beauty and durability.
2) The braking system is applied when the tow-bar is in upright or released position.
3) With swivel casters, the direction can be freely adjusted to have flexible operation.
4) This pallet load cargo from the back.
5) 40FT cargo pallet trailer has easy maintenance.
6) The walkway is covered with anti-slipping steel plate. The main moving parts use anti-wear alloy bushings with galvanized or painted surface to be rust-proof.

Custom service
1) Logo can be applied based on customer’s demands.
2) The trailer surface can be painted or galvanized.

Overall dimension	13767mm x2720mm x536mm
Roller bed height	508mm – 536mm
Payload	36000kgs
Own weight	7500kg
Max. Towing speed	15km/h
Loading	End loading

Overall dimension	13934mm x2643mm x536mm
Roller bed height	508mm – 536mm
Payload	36000kgs
Own weight	7500kg
Max. Towing speed	15km/h
Loading	Long sides loading or end loading with the indexing roller cells
