Description
The HD-ATT60 aircraft towing tractor is capable of trundling or dragging a variety of CRJ aircraft, including Boeing B727, B737, B757, Airbus A300, A310, A319, A320, McDonnell MD-82, MD-90 and other aircraft weighing less than 150 tons.

The aircraft towing tractor consists of the frame, drive system, engine system, air conditioning system, dual oil system, hydraulic system, cab, electrical system and flat system.

Technical Specifications
Product Model ATT60 A ATT60 B
Traction Power 120KN 125KN
Maximum Tractive Tonnage 15T 20T
Steering Modes Four-Wheel Steering Four-Wheel Steering
Vehicle Length 5430mm 5430mm
Vehicle Width 2080mm 2080mm
Vehicle Height(Cab) 1990mm 1990mm
Ground Clearance 210mm 210mm
Minimum Turning Radius(Inside) 3300mm 3600mm
Minimum Turning Radius (Outside) 8800mm 8800mm
Wheel Base 2200mm 2200mm
Track (Front/Rear) 1790mm 1790mm
Approach Angle 15° 15°
Departure Angle 15° 5°
Maximum Forward Speed 25km/h 25km/h
Maximum Back Speed 20km/h 20km/h
Curb Weight 15960kg 15200kg
Maximum Gradability 25° 25°
Maximum Braking Length 3.4M 3.4M
Engine Model/ Brand Perkins:1044TA/ Perkins TD3.6L4/DEUTZ
Power 74.5KW/2400 74.9KW/2500
Torque 230 Nm 186 Nm
Diesel Consumption 215 g/Kw.h 220 g/Kw.h
Gearbox Model/ Brand DANA T12465 (4 Forward Gear 3Reverse Gear ) DANA T12465 ( 4 Forward Gear 3Reverse Gear
Front axle Model/Brand DANA212 Steer /Drive Axle(Leaf Spring Damping) DANA212 Steer /Drive Axle(Leaf Spring Damping)
Rear Axle Model/ Brand DANA212 Steer /Drive Axle DANA212 Steer /Drive Axle
Hydraulic Oil Tank 80 L 80 L
Diesel Tank 90 L 90 L
Electrical System 24VDC 24VDC
Feature
  • Cab
    1) The cab is fully enclosed, and uses an easy to operate power hydraulic system.
    2) The cab includes a variety of instruments, gauges, indicator lights and other clear digital displays.
    3) The cab is equipped with an air conditioner, backwards movement image system, radar and other features.
  • The tractor body is built using a high strength, thickened steel plate and a counterweight steel plate, thus ensuring tractor stability and safety.
  • The aircraft towing tractor uses DEUTZ engines or Perkins engines, both of which feature a high power with low emission levels. These tractors easily provide trundle or drag operations for narrow body and medium sized aircraft.
  • The tow tractor uses DANA T12465 gearbox, which is a power shift gearbox with a torque converter: 4 gears forward and 3 reverse.

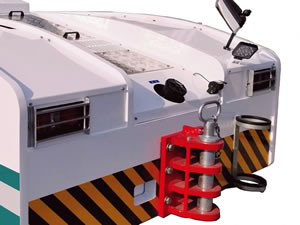

  • The two ends of the tractor body are equipped with a 70mm diameter traction pin so that the user can manually control the hook device.
  • Brake characteristics: double circuit /quattro hydraulic drive / disc brakes in the oil
  • Parking brake characteristics: rear wheel hydraulic brake /disc brakes in the oil
  • Steering mode: quattro hydraulic control steering
