HD-PSC5800 Aircraft Passenger Stair Truck

Description

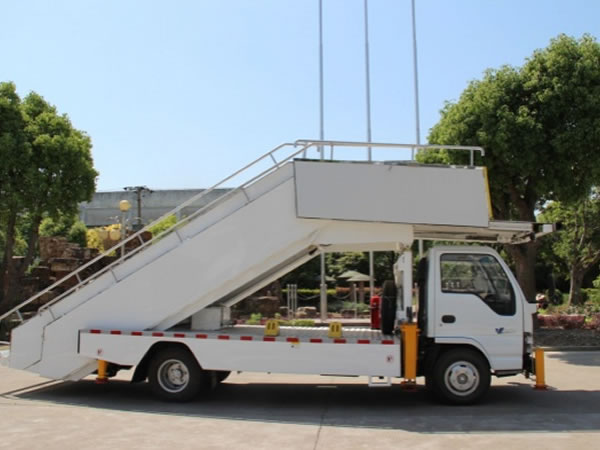

The HD-PSC5800 aircraft passenger stair truck is a commercial chassis modified aviation ground equipment developed to assist passengers on and off aircraft, and is suitable for aircraft with a door height between 2400 and 5800mm.

This passenger stair truck is composed of a second class truck chassis, ladder (fixed ladder, sliding ladder), lifting mechanism, platform, leg support, hydraulic system, and electrical system. It is most often used with the B737 series, B747, B757, B767, B777, B787, A320 series, A300, A330, A340, and A380 front cabin models.

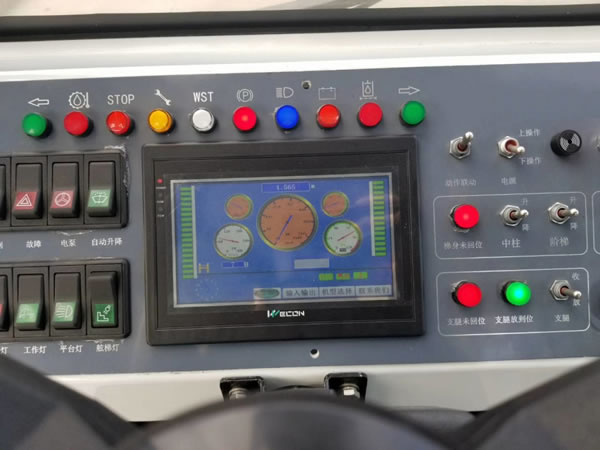

• An intelligent one-button elevator program is installed in order to carry out lifting and stopping via a switch. This ensures operation is simple, convenient and reliable.

  •

  •

• This automatic truck has a large space and comfortable operation. It can also be equipped with tachographs, rear view camera, radar and other accessories.

  •

  •

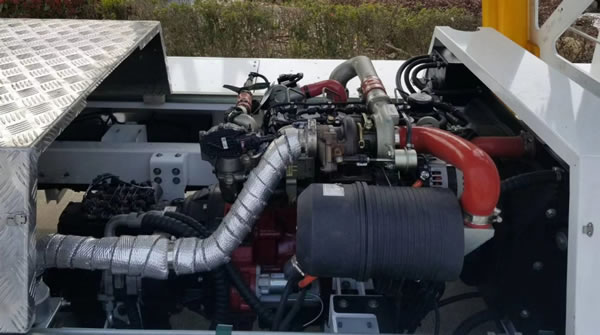

• A variety of engines are optional, such as Cummins, Deutz, JMC and other options.

  •

• The chassis is made of a thick steel plate, the pedal is made of a skid resistant aluminum. The stainless steel railing is protected by an epoxy resin primer, and a two layer polyurethane coating.
• The broadside is made of an aluminum alloy sandwich structure. It uses integral pressure foaming for a smooth appearance.
• All operating switches, plugs, and circuit boards have a long service life because they are water resistant.
• The frame and ladder board use a three-layer painting process, including primer process, intermediate-coat painting process, and top-coat painting process.
• This aircraft passenger stair truck has skid resistant functions due to the use of an aluminum profile pedal.

• Install and set up on collision avoidance system and safety interlock system for crane / elevator to ensure operation safety.

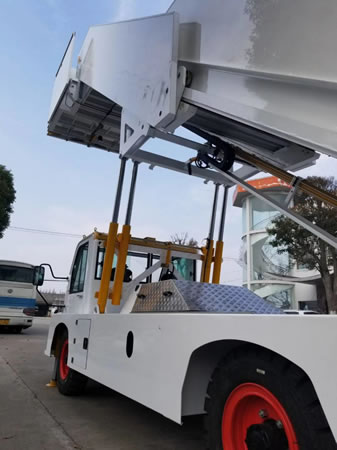

• Two cylinders will lift simultaneously. These cylinders play a protective role in the lifting process, and a balance valve is installed on the hydraulic circuit in order to ensure synchronization of the two cylinders.
• This aircraft passenger stair truck has a hydraulic stabilizer. When the passenger car is stationary, the hydraulic stabilizer supports the truck to keep it stable.

  •

  •

• The dual circuit brake system ensures the safety of customers’ walking.
• The hydraulic steering system makes the truck safe, reliable, flexible.

  •

• You can choose a truck to drive at left and right.

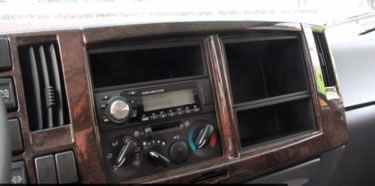

• The cab can be equipped with fans or air conditioners based on passenger needs.
• Stair mat (antiskid pad / carpet)

  •

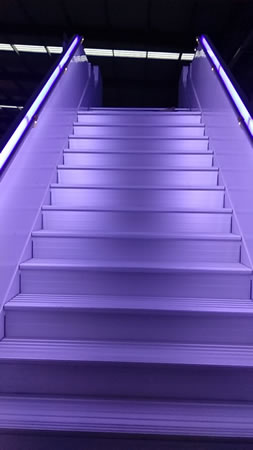

• This aircraft passenger stair truck can be equipped with stair armrests and lamp posts.

  •

  •

• Customizable closed or half-open canopy.

  •

  •

• It can customize LOGO or the specified special word.
